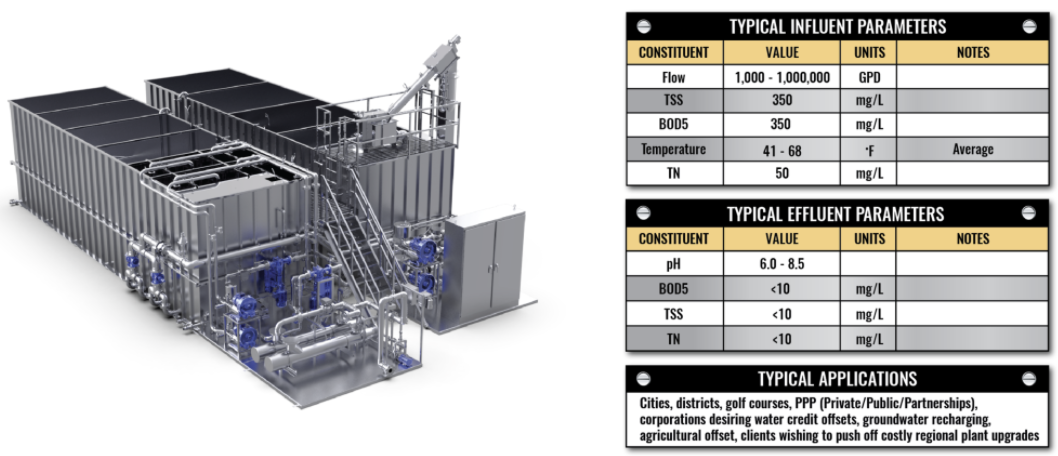

Cloacina’s MEMPAC-S (Scalping) is one of the most revolutionary products currently available in wastewater treatment. Untreated domestic wastewater is intercepted, pumped out of the gravity sewer into the MEMPAC-S, treated to reuse standards and then discharged to irrigate parks and common areas, used to offset agricultural, irrigation or commercial water usage or recharge groundwater supplies using direct injection. Untreated solids are returned to the sewer. A scalping plant is an alternative to centralized wastewater treatment that can provide secondary or tertiary treatment within a smaller facility.
In times of drought and mandatory water conservation measures, it is no longer responsible to irrigate sports complexes, flowerbeds and medians with potable water, nor is it tenable to continue to send a valuable resource to final discharge locations such as the ocean when communities are struggling to maintain groundwater balance. Fabricated from stainless steel, the MEMPAC-S can reclaim 100% of the treated effluent in accordance with Title 22 requirements or any other state or national regulations, lessening the strain on diminishing potable water and groundwater supplies. By performing treatment adjacent to the disposal location, a scalping plant is an affordable reuse option.
OPTIONAL FEATURES
Extended warranty
pH adjustment system
Denitrification/BNR
Package lift station
Prefabricated controls building
Sludge disposal equipment
Incorporation of existing controls equipment into Cloacina’s controls package
Energy saving controls package upgrades
Effluent flow metering
Additional equipment sound attenuation
Automated Clean In Place (CIP) system
Disinfection system
Thermal protection
Mobile units
Odor mitigation equipment
Automated foam control
Sediment/grit traps
Variety of grating and covers available
Project management
Equipment installation
Operations and maintenance training and services
Remote monitoring and support
STANDARD FEATURES
304 stainless steel tankage
Controls system
Influent screening
Membrane cassettes
Semi-sound attenuated, positive displacement blowers
Modular medium bubble diffusers
All sensory equipment and internal pumps are mounted on Cloacina’s Slide Rail System
Above-ground installation
Human Machine Interface (HMI)
