PRODUCT OVERVIEW
The MEMPAC-R is Cloacina's rental Membrane Bioreactor (MBR) for both municipal and industrial clients in all 50 states and Canada who need immediate wastewater treatment solutions. Every second counts in an emergency and the MEMPAC-R deploys and installs quickly.
Designed by MBR experts, Cloacina’s MEMPAC-R is optimized for hassle-free installation, efficiency and streamlined operations and maintenance. If your staff can operate a clarifier, they can operate the MEMPAC-R! The system is automated and requires minimal operator involvement. The MEMPAC-R can also meet stringent discharge and re-use requirements. Manage your MEMPAC-R through the system’s integration with Cloacina's cloud-based remote monitoring platform. Receive alerts and manage operations from your preferred mobile device – a phone, tablet or computer.
With its compact design, the MEMPAC-R is the perfect choice for projects with limited footprints or remote locations. Flexible rental periods and the option to purchase the rented system are available. Multiple MEMPAC-Rs can be installed together to meet higher flow ranges. Cloacina can also provide turn-key installation, operations, maintenance and demobilization services.

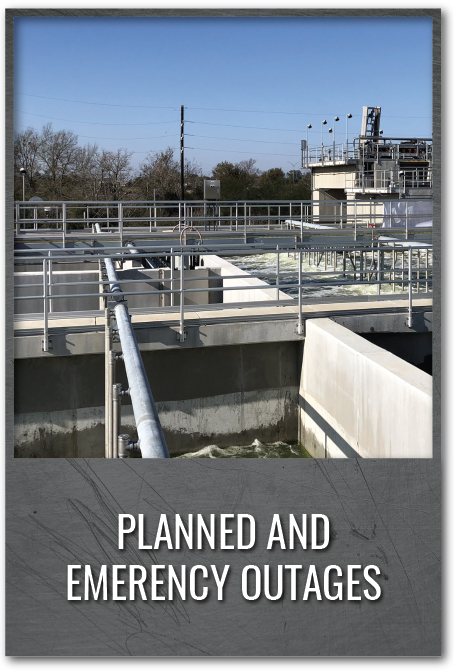

TYPICAL APPLICATIONS
STANDARD FEATURES
Treats flows up to 65,000 GPD per unit
Title 22 reuse quality treated effluent
Footprint of 60’ x 10’
Requires 460/3/60 power
DOT approved design for all 50 states –
no transit permits required
OPTIONAL FEATURES
Chemicals and consumables
Solids dewatering press
Operations and maintenance (24/7/365 staffing available)
Effluent disinfection
mempac-R Bod loading range - domestic wastewater
Domestic Design Considerations:
Water temperature: 15°C
Flow capacities subject to membrane design flux rates
Design min SRT: 14.0 days
Flow capacities subject to effluent nutrient requirements
Design min F/M: 0.11 d^-1
Based on maximum month flow
Flow capacities are based on full plant water surface level
Design MLSS concentration ranges from 3,000 - 9,600 mg/L
mempac-R Bod loading range - Industrial wastewater
Industrial Design Considerations:
Water temperature:15°C
Flow capacities subject to membrane design flux rates
Design min SRT: 3.4 days
Designed for BOD reduction only
Design Min F/M:0.32 d^-1
Based on maximum month flow
Flow capacities are based on full plant water surface level
Design MLSS concentration ranges from 3,000 - 9,600 mg/L
